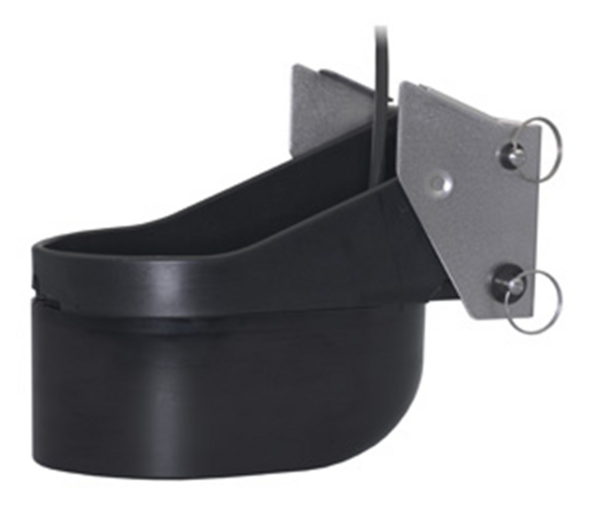

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths. The TM275C-LHW CHIRP transom-mount transducer has 8 internal, broadband ceramic elements. The low-frequency can be chirped from 42 to 65 kHz while the high-frequency chirps from 130 to 210 kHz. The beamwidth is a wide 25° across all frequencies. Also included is a high-precision water temperature sensor for accurate sea-surface temperature readings.

Dimensions W x H x D

108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket

Weight

4 kg (8.9 lb)

Frequencies

42-65 kHz & 150-250 kHz

Max Depth

760m (2500 ft) (low freq) depending on Sonar
